防震工作檯/平台

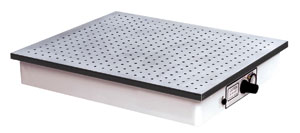

VFW 防震工作檯
• Vertical and horizontal vibration isolation
• High performace Active-Air Suspension
• Automatic Leveling
• 24 x 30 inch, 800 lbs shipping weight
• Additional sizes available
• Vertical and horizontal vibration isolation
• High performace Active-Air Suspension
• Automatic Leveling
• 24 x 30 inch, 800 lbs shipping weight
• Additional sizes available
VFW 防震工作檯
• Vertical and horizontal vibration isolation
• High performace Active-Air Suspension
• Automatic Leveling
• 24 x 30 inch, 800 lbs shipping weight
• Additional sizes available
• Vertical and horizontal vibration isolation
• High performace Active-Air Suspension
• Automatic Leveling
• 24 x 30 inch, 800 lbs shipping weight
• Additional sizes available
產品說明
防震平台
Vibration Free Platform
防震工作台
Vibration Free Workstation
WPI 提供無振動工作站和平台，提供客製化訂製
| MINIMUM LOAD @ 20 psi: Vertical Natural Frequency | 1.9 Hz |
| MINIMUM LOAD @ 20 psi: Isolation Efficiency @ 5 Hz | 0.7 |
| MINIMUM LOAD @ 20 psi: Isolation Efficiency @ 10 Hz | 0.9 |
| MINIMUM LOAD @ 20 psi: Horizontal Natural Frequency | 2.2 Hz |
| MINIMUM LOAD @ 20 psi: Isolation Efficiency @ 5 Hz | 0.64 |
| MINIMUM LOAD @ 20 psi: Isolation Effieciency @ 10 Hz | 0.9 |
| MAXIMUM LOAD @ 80 psi: Vertical Natural Frequency | 1.5 Hz |
| MAXIMUM LOAD @ 80 psi: Isolation Frequency @ 5 Hz | 0.85 |
| MAXIMUM LOAD @ 80 psi: Isolation Frequency @ 10 Hz | 0.97 |
| MAXIMUM LOAD @ 80 psi: Horizontal Natural Frequency | 1.2 Hz |
| MAXIMUM LOAD @ 80 psi: Isolation Efficiency | 0.91 |
| MAXIMUM LOAD @ 80 psi: Isolation Efficiency | 0.97 |
| Note: | Typical performance efficiencies are for microdistubances |
| NET LOAD CAPACITY at 80 psi | 800 lb (363 kg) |
| MINIMUM LOAD @ 20 psi: Vertical Natural Frequency | 2.3 Hz |
| MINIMUM LOAD @ 20 psi: Isolation Efficiency @ 5 Hz | 0.52 |
| MINIMUM LOAD @ 20 psi: Isolation Efficiency @ 10 Hz | 0.83 |
| MINIMUM LOAD @ 20 psi: Horizontal Natural Frequency | 2.9 Hz |
| MINIMUM LOAD @ 20 psi: Isolation Efficiency @ 5 Hz | 0.4 |
| MINIMUM LOAD @ 20 psi: Isolation Effieciency @ 10 Hz | 0.92 |
| MAXIMUM LOAD @ 80 psi: Vertical Natural Frequency | 2.1 Hz |
| MAXIMUM LOAD @ 80 psi: Isolation Frequency @ 5 Hz | 0.7 |
| MAXIMUM LOAD @ 80 psi: Isolation Frequency @ 10 Hz | 0.91 |
| MAXIMUM LOAD @ 80 psi: Horizontal Natural Frequency | 1.8 Hz |
| MAXIMUM LOAD @ 80 psi: Isolation Efficiency | 0.81 |
| MAXIMUM LOAD @ 80 psi: Isolation Efficiency | 0.95 |
| Note: | Typical performance efficiencies are for microdistubances |
| NET LOAD CAPACITY at 80 psi | 216 lb (98 kg) |
