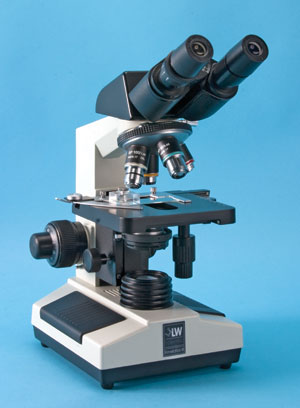

W30S 專業級雙目顯微鏡
W30S 專業級雙目顯微鏡
• Binocular
• Semi-plan optics
W30S 專業級雙目顯微鏡
• Binocular
• Semi-plan optics
產品說明
W30 專業級顯微鏡是大學、醫學院和研究實驗室的暢銷產品。
性能卓越，其特點包括鈦塗層 DIN 或半平面光學元件和 30 年抗真菌塗層。
W30 是以優惠的價格獲得卓越性能的選擇。
| HEAD | Binocular (Seidentopf) Inclined 30° Rotates 360° Dual diopter adjustment Interpupillary distance range 55-75 mm 10X/18 wide field eyepieces Monocular, trinocular, dual binocular |
||||||||||||||||||||
| NOSEPIECE | Quadruple forward-facing nosepiece Multiple ball bearing mounted |
||||||||||||||||||||
| OBJECTIVES | DIN Achromatic, DIN Semi-Plan or DIN Plan 30-year anti-fungal coating 4X, 10X, 40X, 100XR (oil) Parfocal, parcentric, color-coded
|
||||||||||||||||||||
| STAGE | Mechanical stage (140mm x 140mm) Coaxial drive controls XY Movement: 73mm x 43mm Stage locking lever Slow-close hydraulic slide finger |
||||||||||||||||||||
| FOCUS | Coarse adjustment: range of 30mm Fine adjustment: graduation of 2µm Tension control knob |
||||||||||||||||||||
| ILLUMINATION | Moveable Abbe condenser, NA 1.25, rack and pinion Iris diaphragm Variable halogen light source (12V/20W bulb) 110V/220V switchable electronics 12VDC battery input available |
||||||||||||||||||||
| ACCESSORIES INCLUDED | Three 0.5 amp fuses mirror attachment (for field use) blue and green filters dust cover immersion oil spare bulb |
||||||||||||||||||||
| DIMENSIONS AND WEIGHT | 15" (38 cm) x 9" (23 cm) x 7" (17.8 cm) 14 lb. (6.4kg) |
